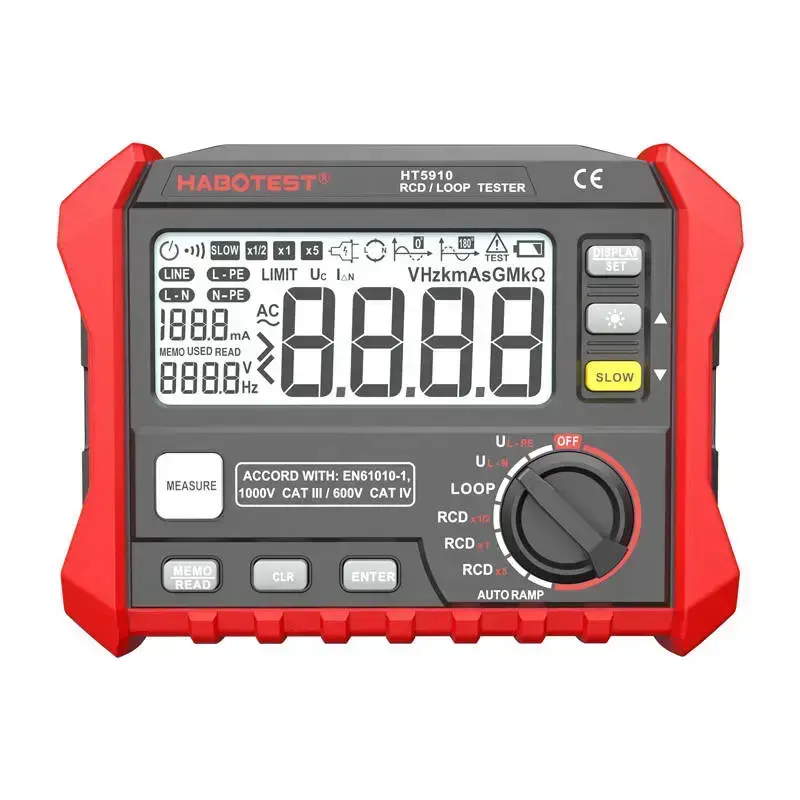

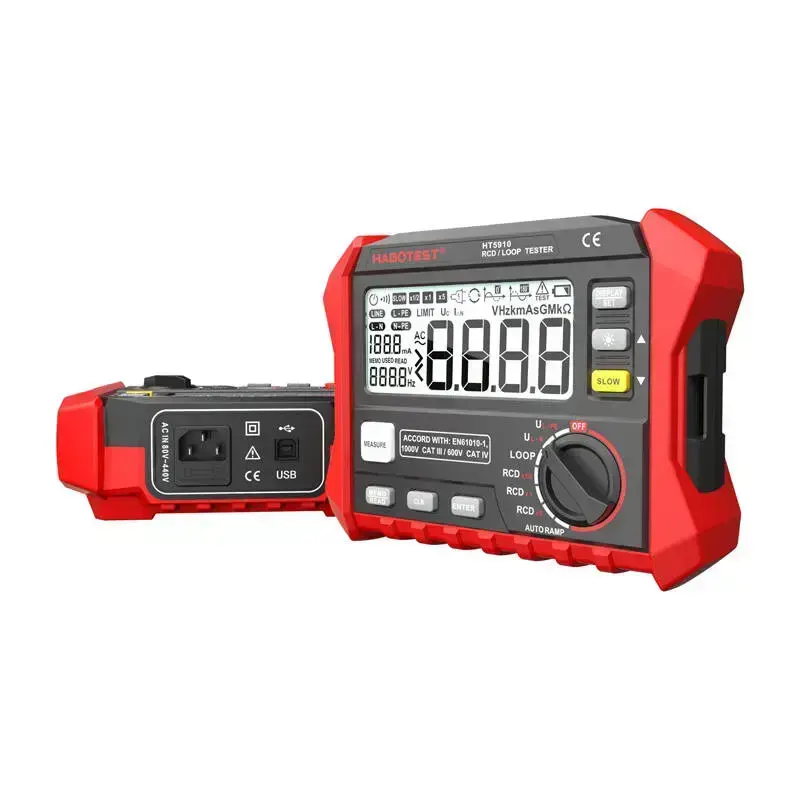

Digital RCD / Loop Resistance Tester Habotest HT5910
The Habotest HT5910 resistance tester is a tool that will allow you to get resistance measurements of power circuits. It offers loop, RCD and AUTORAMP measurements. It has an easy-to-read LCD display that will provide you with quick and clear information about the data obtained.
Functionality first of all
With the help of the meter you will successfully obtain information on earth resistance. You will gain access to 100 groups, which store data from performed measurements. The device is equipped with a special knob which allows you to select the desired type of measurement and start the meter operation with the "Measure" button.
Convenience of use
The HT5910 uses an easy-to-read LCD screen that displays all data obtained. This gives you instant access to your measurements, even in dim or bright environments. The meter draws its power from 6 AA batteries, which must be purchased separately.
Producer
Habotest
Model
HT5910
Tripping time
1 x IΔ N300 (500ms), 5 x IΔ N40ms (150ms) (±3ms)
Tripping current
(0.2-1.1)IΔN (±0.1IΔN)
Contact voltage
0~99.9V (±10%+0.2V)
Alternating Voltage
0~440 V (±3%+3V)
Frequency
DC, 45~65 Hz (±1 Hz)
Loop resistance (RL)
0.1~2000Ω (±10%+0.2d)
RL current test
0.51 IΔN (±10%+10d)
Multiplying power of measuring current
x0.5, x1, x5
Current level (IΔN)
10 mA, 30 mA, 100 mA, 300 mA, 500 mA
Phase angle
0° or 180°
Power supply
6 x AA 1.5V battery (not supplied)
Dimensions
180 x 140 x 65 mm
Weight
Approximately 95 g
Safety rating
EN61010-1 / CAT.III600V
Data storage
100 groups
Interface
USB2.0
